Preset components

Overview

When you design a form in Designer, you can save one or more components and their settings to a preset. After saving, the preset will be available for quick insertion as a component on the Components tab. To create a preset, select the necessary components and click the Create a preset component button (with a bookmark icon) on the toolbar.

Differences with templates:

• The components from the preset are inserted into the form separately, without combining into a new entity.
• You can edit the components after insertion directly on the form and this will not entail changing the original preset.

Example

1. Create a simple form with two inputs:
2. Set the label 'Name' to the first input, and 'Email' to the second input.

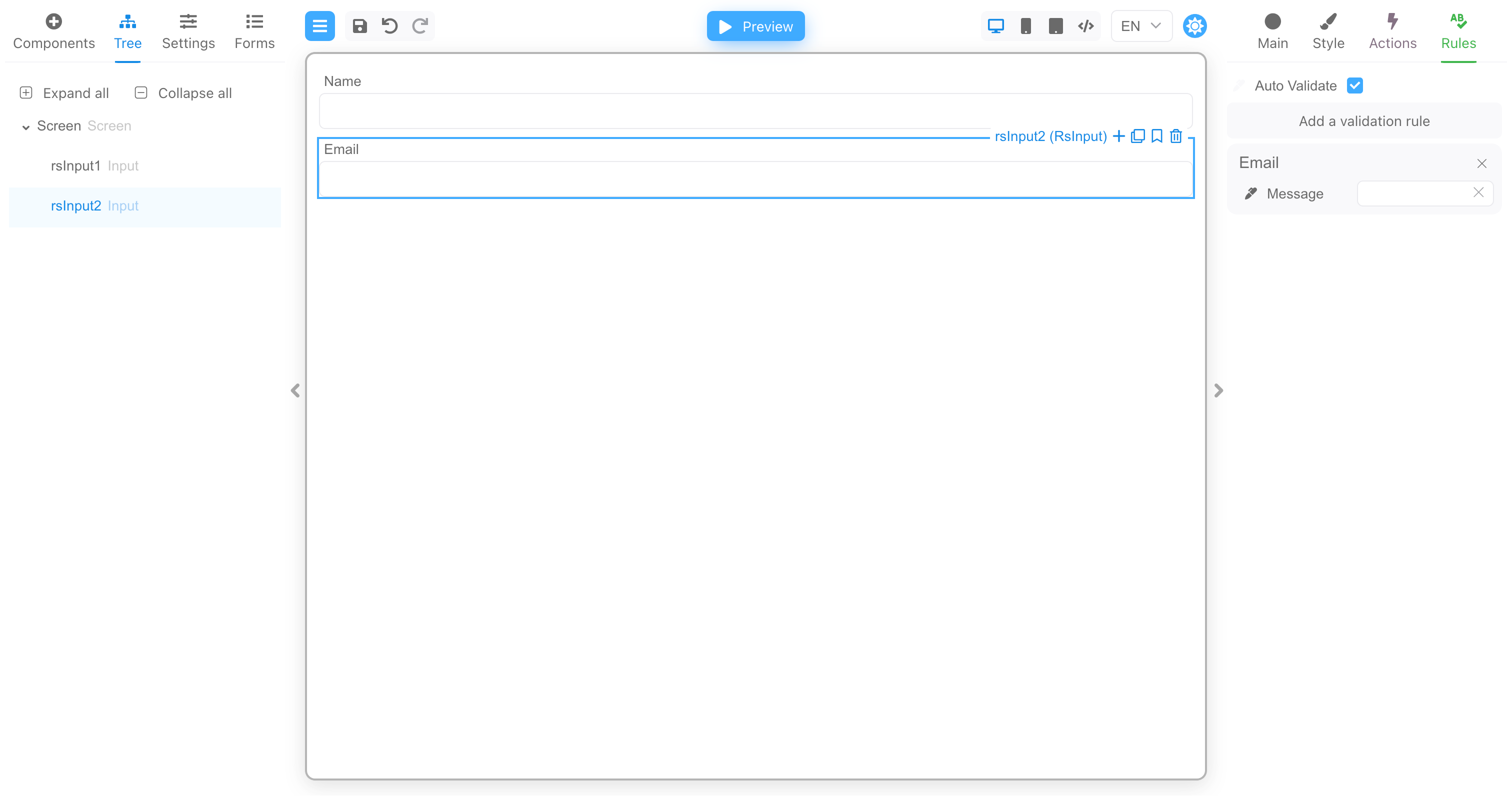

3. Set the other settings, for example, for the email input field, add the 'Email' validation on the Rules tab.

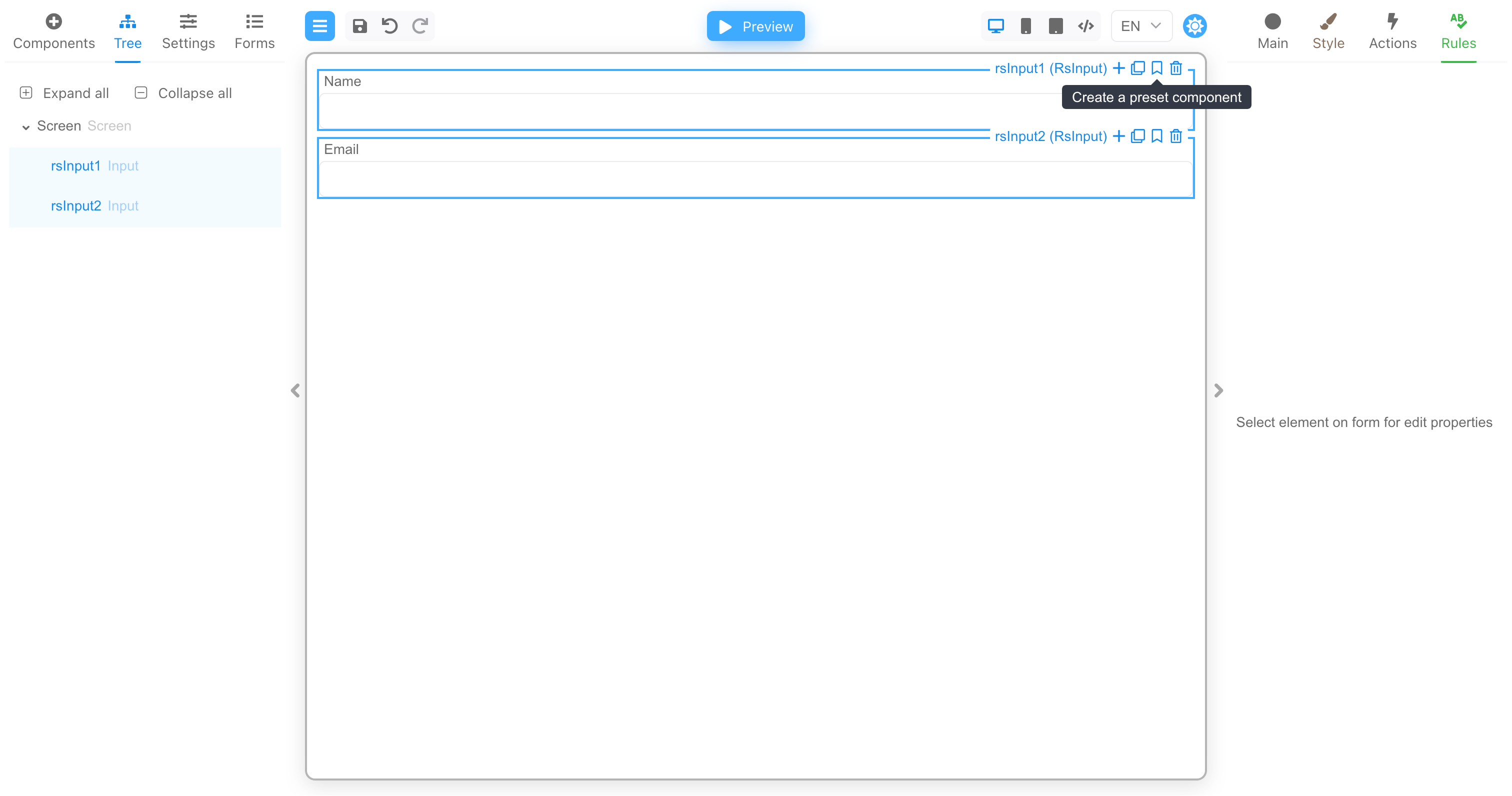

4. Select both components by pressing Shift and clicking on the components in turn.
5. Click the Create a preset component button (with a bookmark icon) on the toolbar.

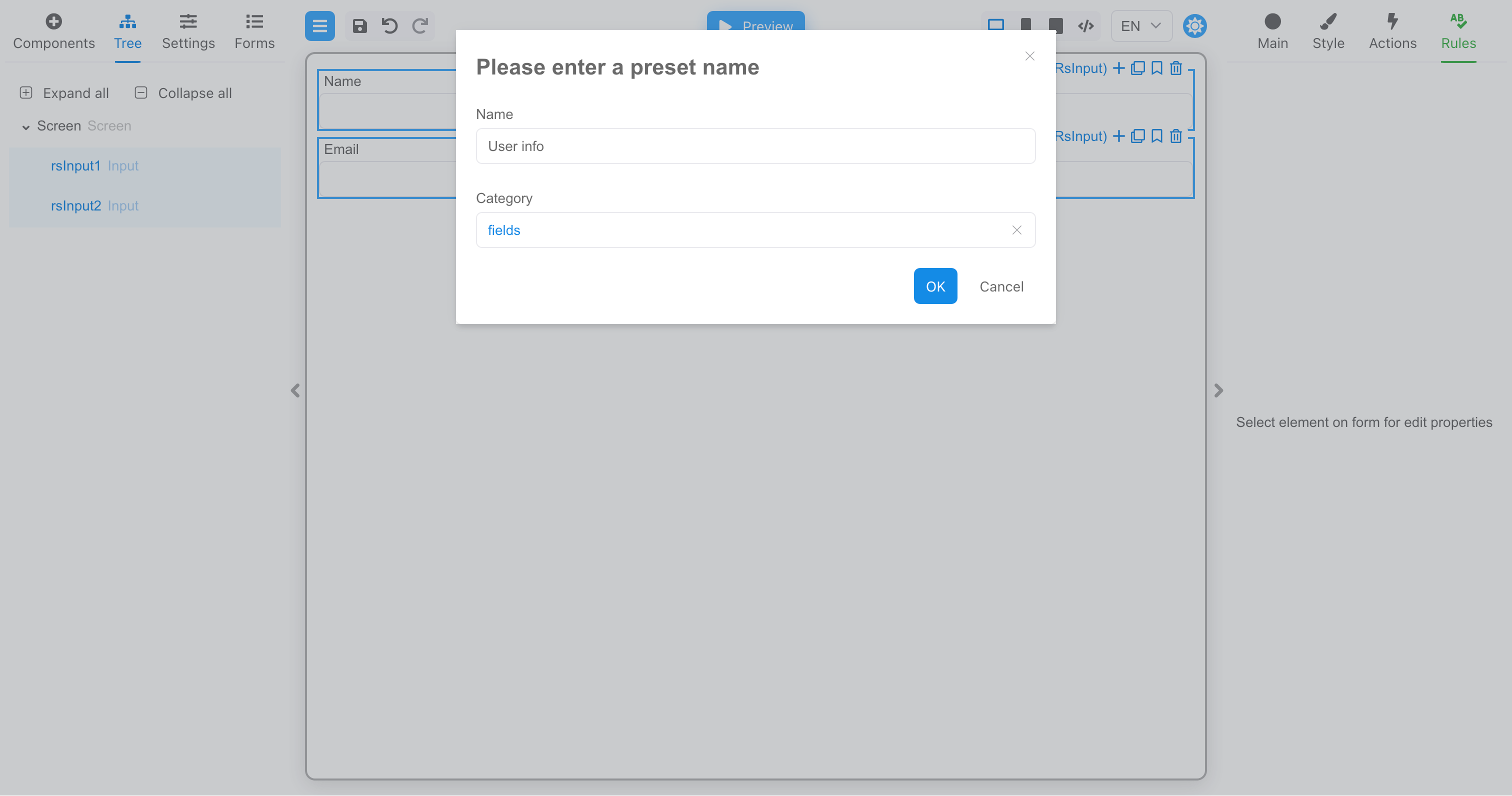

6. Set the name and category for the preset in the dialog box.

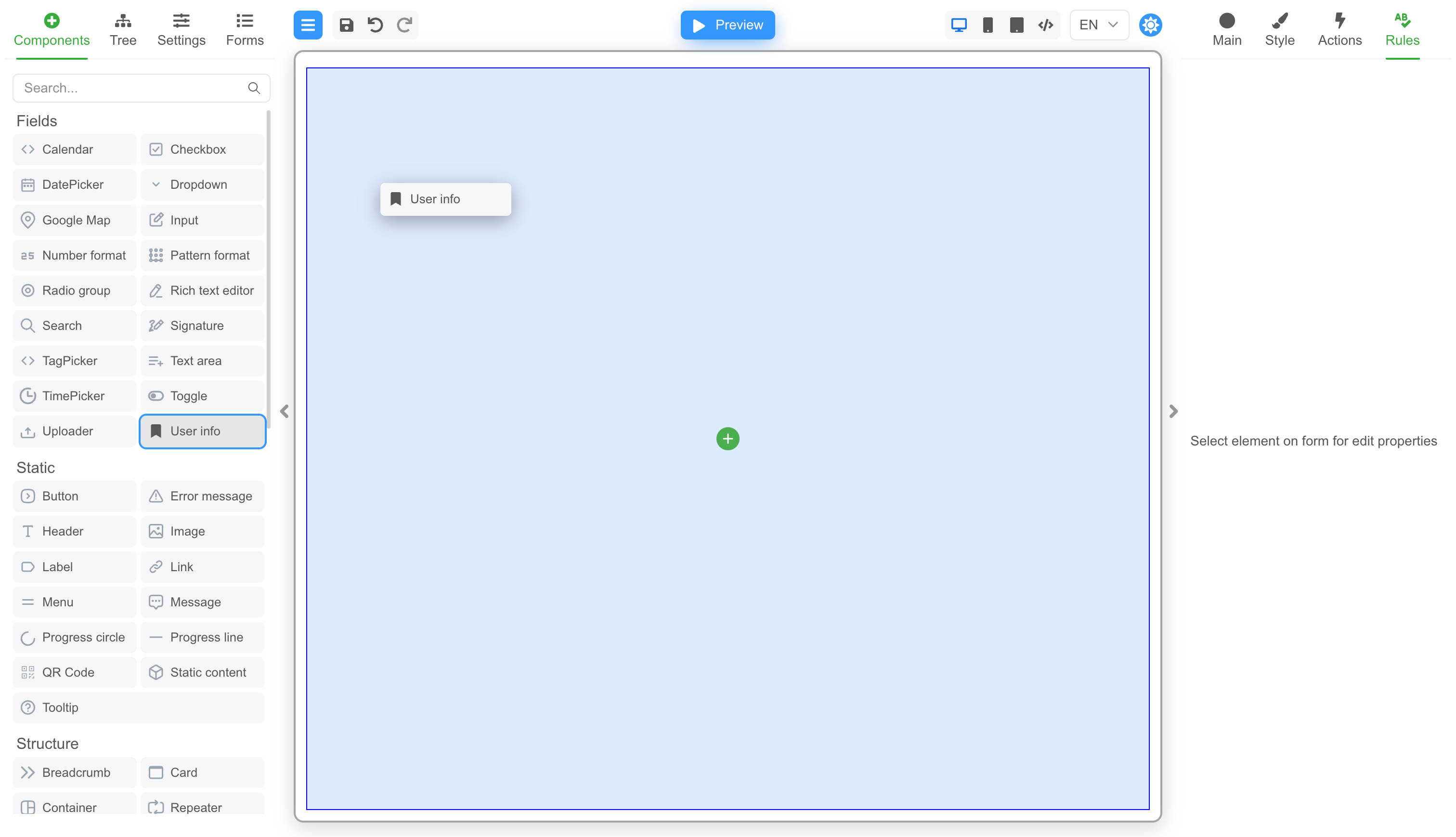

7. The preset is now available on the components tab. To insert it, drag it onto the form.

info

In the current version, localization is not saved in the preset. We plan to add this feature in the future.

Predefined presets

You can pre-define presets that will be immediately available to the user in the designer. They are created in the same way as regular components, through the definePreset function. Here is an example:

import {rSuiteComponents} from '@react-form-builder/components-rsuite'
import {ComponentStore, definePreset} from '@react-form-builder/core'
import {BuilderView, FormBuilder} from '@react-form-builder/designer'
import {UserInfo} from '@rsuite/icons'

const rawComponents = [
  {
    "key": "rsInput1",
    "type": "RsInput",
    "props": {
      "label": {
        "value": "Name"
      }
    }
  },
  {
    "key": "rsInput3",
    "type": "RsInput",
    "props": {
      "label": {
        "value": "Email"
      }
    },
    "schema": {
      "validations": [
        {
          "key": "email"
        }
      ]
    }
  }
]

const componentStores = rawComponents.map(component => {
  return Object.assign(new ComponentStore('', component.key), component)
})

const userInfoPreset = definePreset('User info', componentStores)
  .category('fields')
  .icon(UserInfo)

const components = [...rSuiteComponents, userInfoPreset]
  .map(definer => definer.build())

const view = new BuilderView(components)

const FormBuilderApp = () => {
  return <FormBuilder view={view}/>
}

Presets options

You can set preset options via componentPresetOptions FormBuilder prop.

Custom presets storage

Also, using the onCreate and onRemove callbacks of componentPresetOptions, you can implement your own preset storage:

import {rSuiteComponents} from '@react-form-builder/components-rsuite'
import {BuilderView, FormBuilder, PresetComponentLocalStorage} from '@react-form-builder/designer'
import {useMemo} from 'react'

const components = [...rSuiteComponents]
  .map(definer => definer.build())

const view = new BuilderView(components)

export const FormBuilderApp = () => {
  const storage = useMemo(() => {
    return new PresetComponentLocalStorage('my-key')
  }, [])

  const presets = useMemo(() => storage.loadPresets(), [storage])

  return <FormBuilder view={view} presetComponentOptions={{
    components: presets,
    onCreate: (preset) => storage.savePreset(preset),
    onRemove: (name) => storage.removePreset(name)
  }}/>
}

Here is the code for the PresetComponentLocalStorage class:

PresetComponentLocalStorage.ts

import type {PresetComponent} from './PresetComponent'

/**
 * Class for working with the preset components in the local storage.
 */
export class PresetComponentLocalStorage {
  private readonly presetsKey: string

  /**
   * Creates an instance of preset storage in local storage.
   * @param presetsKey the key for the preset components in the local storage.
   */
  constructor(presetsKey = 'presetComponents') {
    this.presetsKey = presetsKey
  }

  /**
   * Loads the preset components from the local storage.
   * @returns the preset components.
   */
  loadPresets = (): PresetComponent[] => {
    return Object.values(this.loadAll())
  }

  /**
   * Saves the preset component to the local storage.
   * @param preset the preset component to save.
   */
  savePreset = (preset: PresetComponent): void => {
    const current = this.loadAll()
    current[preset.name] = preset
    this.saveAll(current)
  }

  /**
   * Removes the preset component from the local storage.
   * @param name the name of the preset component.
   */
  removePreset = (name: string): void => {
    const current = this.loadAll()
    delete current[name]
    this.saveAll(current)
  }

  private loadAll = (): Record<string, PresetComponent> => {
    return JSON.parse(localStorage.getItem(this.presetsKey) ?? '{}') ?? {}
  }

  private saveAll = (presets: Record<string, PresetComponent>): void => {
    localStorage.setItem(this.presetsKey, JSON.stringify(presets))
  }
}
