Designer customization

Customizing the FormBuilder interface

Using the customization FormBuilder prop, you can hide, style, or replace any parts of the FormBuilder interface. A customization map object is passed to this property, in which the options of the desired component are set using its customizable key.

Another option for customizing the component is to use pure CSS. Each component has a static CSS class named with the component's name prefixed by FE_. This class is applied to the same element as the style or className attributes, utilizing the customization map.

The components palette in the left panel also has some additional rules for CSS customization.

A list of customizable components is also available as a Set.

Example

import {type CustomizationMap, FormBuilder} from '@react-form-builder/designer'

const simpleCustomization: CustomizationMap = {
  // Hiding the "Download" item in the main menu by using nested CSS selectors.
  MainMenu_Dropdown: {
    style: `
      #menuitem-\\:r5\\: {
        display: none;
      }
    `
  },

  // Customizing Header styles
  Header: {
    className: 'MyClassName',
    style: {
      backgroundColor: 'rgba(52,152,255,.25)',
      borderRadius: '10px',
      margin: 5,
      marginBottom: 10,
      padding: '8px!important'
    }
  },

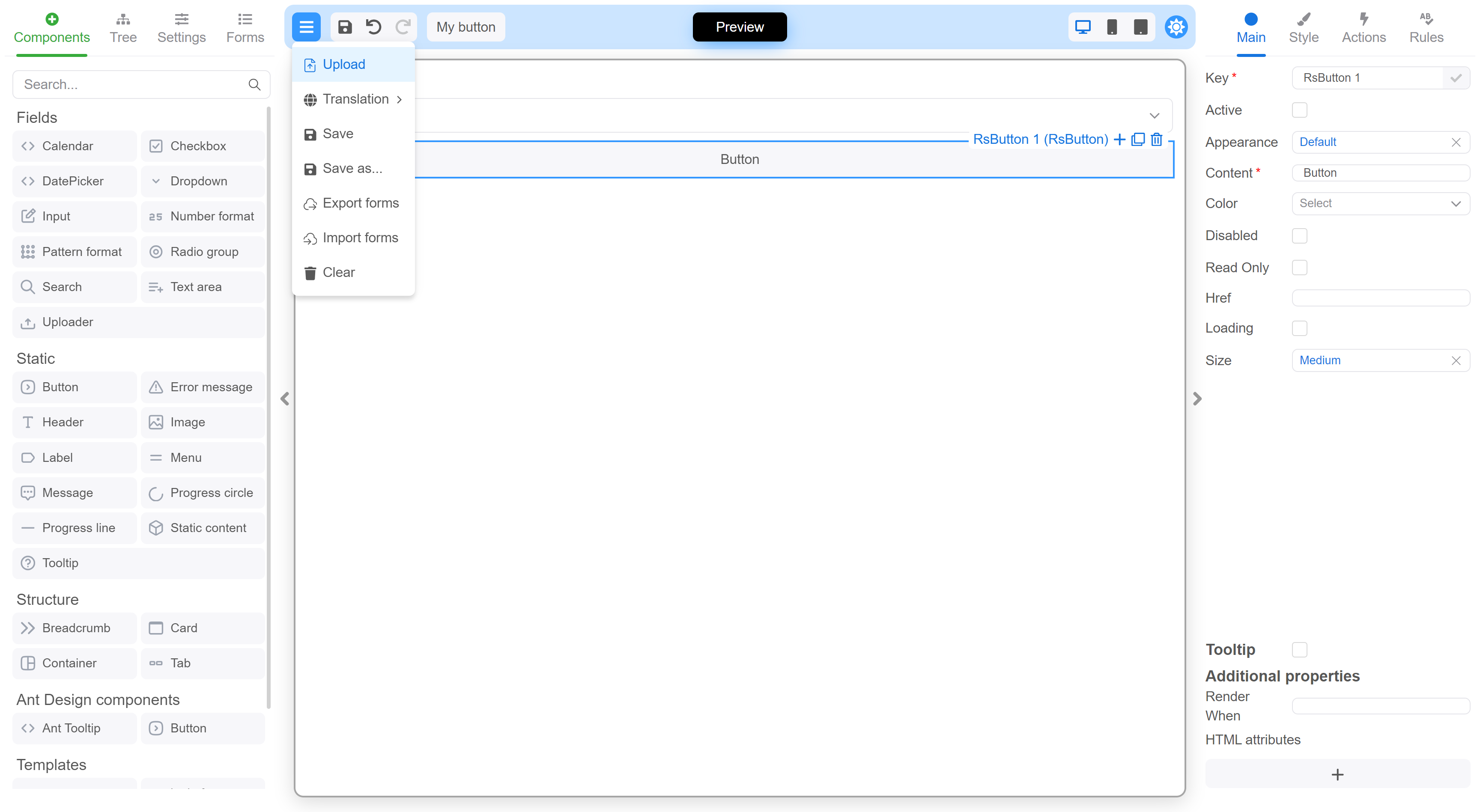

  // Adding a custom button to the header toolbar.
  Header_Toolbar: {
    customRenderer: defaultElement => <div style={{display: 'flex', gap: 10}}>
      {defaultElement}
      <button className={'rs-btn rs-btn-sm'}>My button</button>
    </div>
  },

  // Hiding the icon on the "Toggle mode" button.
  ToggleModeButton: {
    style: `
      background: black !important;

      svg {
        display: none;
      }
    `
  },

  // Hiding the localization dropdown.
  LocalizationSelect: {
    hidden: true
  },

  // Hiding the "Json view" button
  JsonViewButton: {
    hidden: true
  },

  // Hiding the property code button
  PropertyCodeButton: {
    hidden: true
  }
}

const FormBuilderApp = () => {
  return <FormBuilder
    customization={simpleCustomization}
    // other props
  />
}

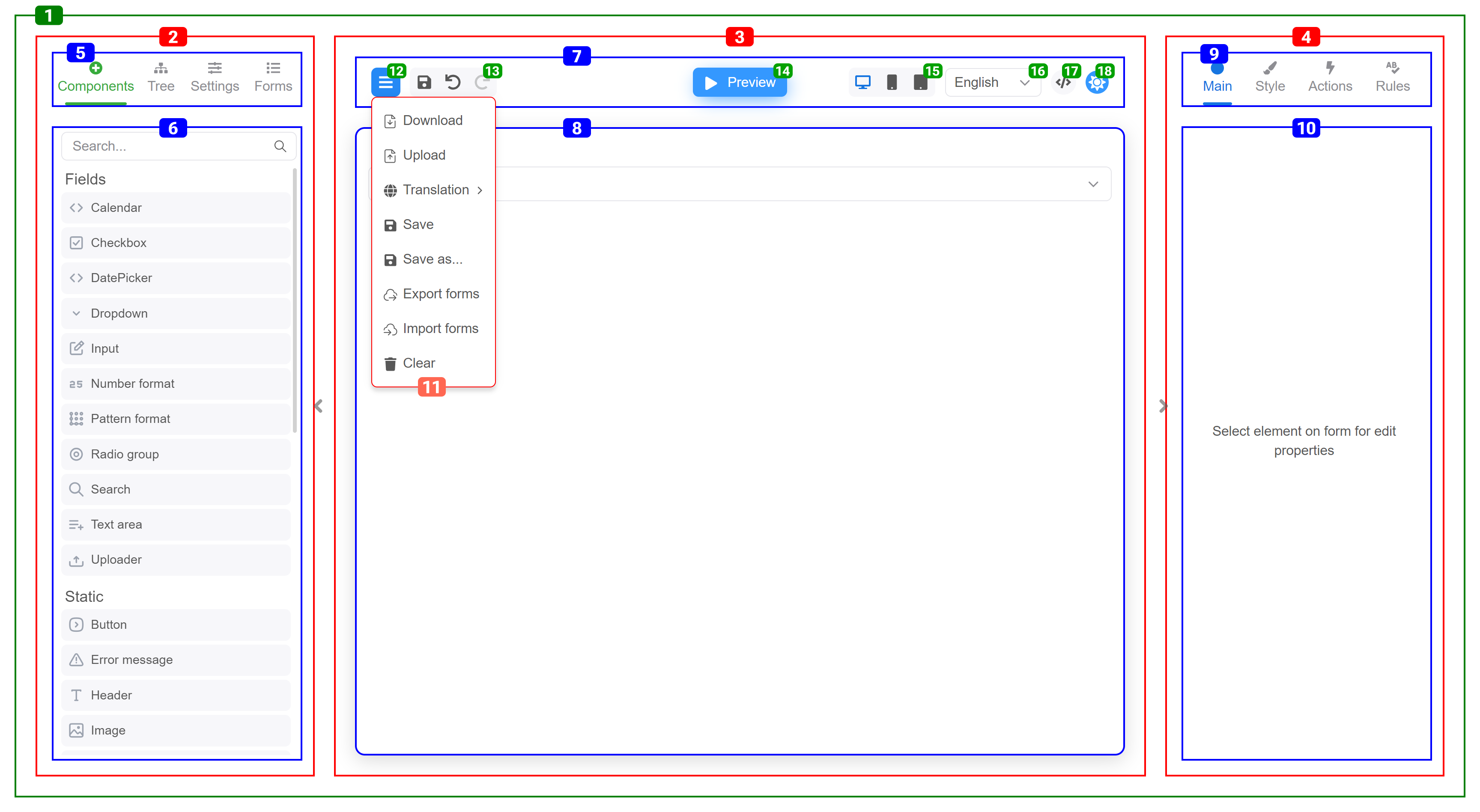

Complete list of customizable component keys

#	Name	className
1	MainContainer	FE_MainContainer
2	LeftPanel	FE_LeftPanel
3	CentralPanel	FE_CentralPanel
4	RightPanel	FE_RightPanel
5	LeftPanel_Nav	FE_LeftPanel_Nav
6	LeftPanel_Content	FE_LeftPanel_Content
7	Header	FE_Header
8	FormContainer	FE_FormContainer
9	RightPanel_Nav	FE_RightPanel_Nav
10	RightPanel_Content	FE_RightPanel_Content
11	MainMenu_Dropdown	FE_MainMenu_Dropdown
12	MainMenu_Button	FE_MainMenu_Button
13	Header_Toolbar	FE_Header_Toolbar
14	ToggleModeButton	FE_ToggleModeButton
15	ResolutionSelect	FE_ResolutionSelect
16	LocalizationSelect	FE_LocalizationSelect
17	JsonViewButton	FE_JsonViewButton
18	ToggleThemeButton	FE_ToggleThemeButton

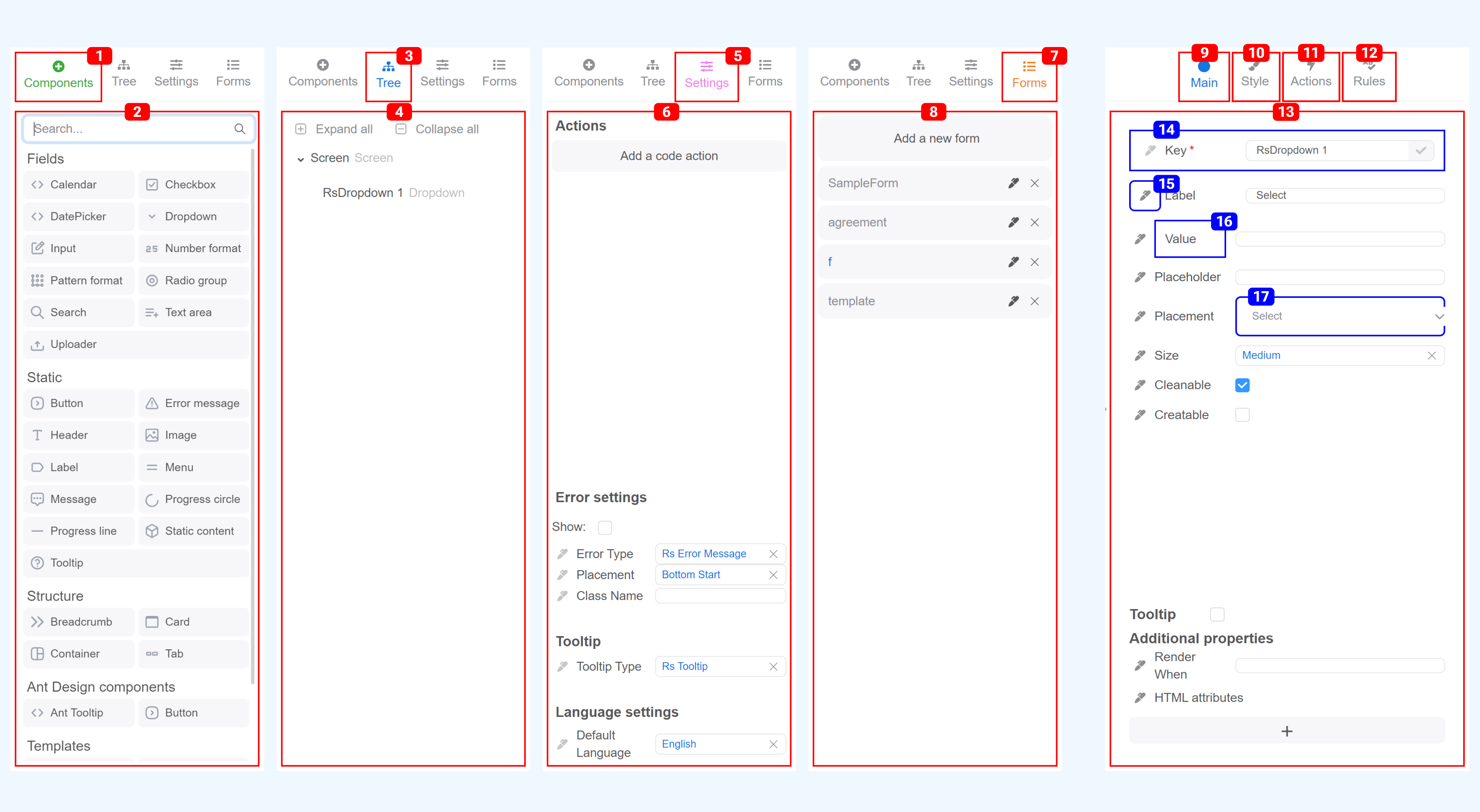

#	Name	className
1	Components_Tab	FE_Components_Tab
2	Components_Tab_Content	FE_Components_Tab_Content
3	Tree_Tab	FE_Tree_Tab
4	Tree_Tab_Content	FE_Tree_Tab_Content
5	Settings_Tab	FE_Settings_Tab
6	Settings_Tab_Content	FE_Settings_Tab_Content
7	Forms_Tab	FE_Forms_Tab
8	Forms_Tab_Content	FE_Forms_Tab_Content
9	Main_Tab	FE_Main_Tab
10	Style_Tab	FE_Style_Tab
11	Actions_Tab	FE_Actions_Tab
12	Rules_Tab	FE_Rules_Tab
13	Main_Tab_Content, Style_Tab_Content, Actions_Tab_Content, Rules_Tab_Content	FE_Main_Tab_Content, FE_Style_Tab_Content, FE_Actions_Tab_Content, FE_Rules_Tab_Content
14	LabeledProperty	FE_LabeledProperty
15	PropertyCodeButton	FE_PropertyCodeButton
16	PropertyLabel	FE_PropertyLabel
17	PropertyInput	FE_PropertyInput

Components palette

Each group and component receives a set of classes composed of its name and type.

When defining a component, you can specify its category. Components with the same category are merged into component groups on the palette.

export const richTextEditor = define(RichTextEditor, 'RichTextEditor')
  .name('Rich text editor')
  .category('fields')
  .props({
    //...
  })

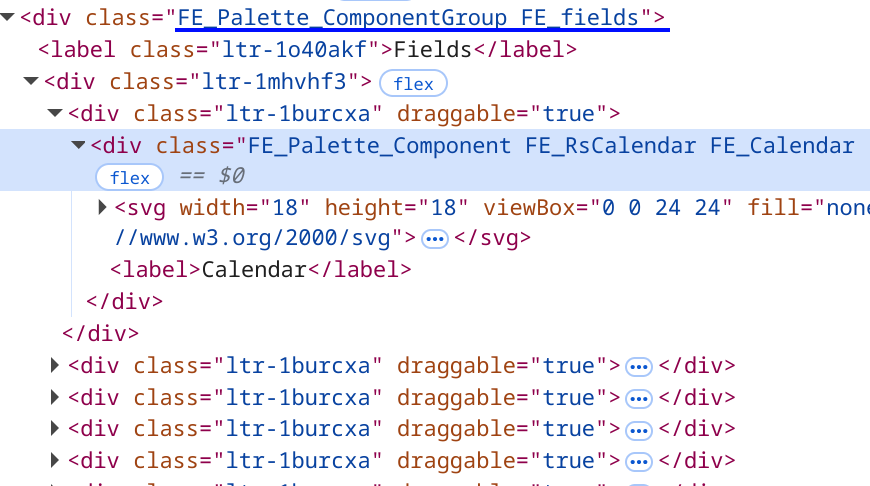

Components group

A component group receives the static class FE_Palette_ComponentGroup plus a category name prefixed with FE_.

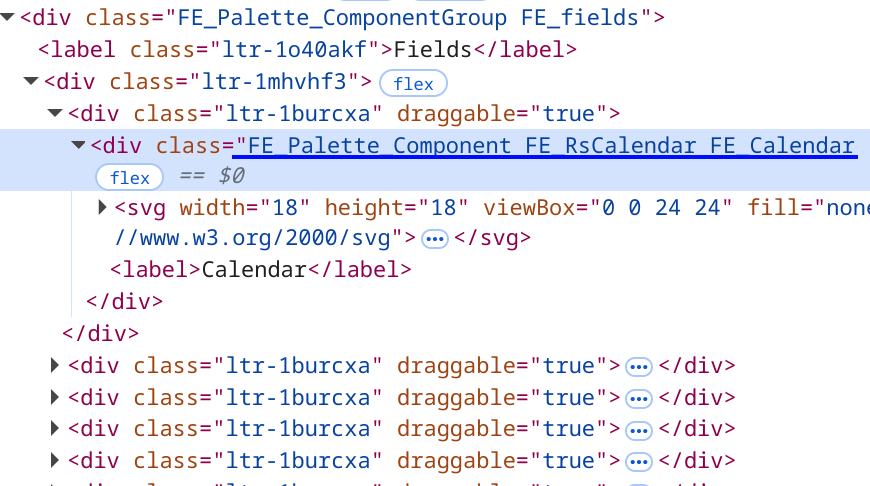

Single component

A component receives the static class FE_Palette_Component composed with its title and name, both prefixed with FE_.

export const rsCalendar = define(RsCalendar, 'RsCalendar')
  .name('Calendar')
  .props({
    // ...
  })

Custom property editors

Using the propertyEditors FormBuilder prop, you can override existing component property editors or set editor for your custom property.

Example

import type {AnnotationEditorProps} from '@react-form-builder/designer'
import {FormBuilder} from '@react-form-builder/designer'
import {RgbaColorPicker} from 'react-colorful'

const MyKeyInput = (props: AnnotationEditorProps) => {
  const {value, onChange} = props
  return <input value={value} onChange={(event) => onChange(event.target.value)}/>
}

/**
 * Converts the string containing a rgba color value into an object.
 * @param value the string containing a rgba color.
 * @returns the object with properties '{r, g, b, a}'.
 */
export function rgbFromString(value: string): RgbaColor {
  const matchColors = /^rgba?\((\d+),\s*(\d+),\s*(\d+)(?:,\s*(\d+(?:\.\d+)?))?\)$/
  const [, r, g, b, a] = matchColors.exec(value) || []
  return {r: Number(r), g: Number(g), b: Number(b), a: Number(a)}
}

const MyColorInput = (props: AnnotationEditorProps) => {
  const {value, onChange, onClean, showError, annotation} = props

  const onColorChange = useCallback((newColor?: RgbaColor) => {
    if (newColor) {
      const {r, g, b, a} = newColor
      onChange(`rgba(${r}, ${g}, ${b}, ${a})`)
      return
    }
    onChange(newColor)
  }, [onChange])

  const color = rgbFromString(value ?? 'rgba(255, 255, 255, 0)')

  return <div>
    <label>{annotation.name}</label>
    <RgbaColorPicker color={color} onChange={onColorChange}/>
    <label>{showError?.()}</label>
    <button onClick={onClean}>Clean</button>
  </div>
}

const FormBuilderApp = () => {
  return <FormBuilder
    propertyEditors={{
      // Overriding the default key property editor
      key: MyKeyInput,

      // Setting the property editor for your own custom property
      customColor: MyColorInput
    }}
    // other props
  />
}
