Custom components

Overview

Custom components in Form Builder are regular React components that are described using the Form Builder API. Describing a component using the API makes it clear to the Form Builder designer which properties of the component can be edited and with which property editors.

To add a custom component to the Form Builder tool, you must do the following:

1. Have a custom component (obviously).
2. Describe your custom component using the Form Builder API.
3. Connect your component to the Form Builder designer.

Component description consists of defining meta-information about the component - component name, component type, component properties. Meta-information on component properties in Form Builder is called an annotation.

Form Builder has the following APIs for describing a component:

1. define - is the primary method for defining a component.
2. string - annotation builder for properties of type string.
3. boolean - annotation builder for properties of type boolean.
4. number - annotation builder for properties of type number.
5. size - annotation builder for properties of type 'CSS unit'.
6. date - annotation builder for properties of type Date.
7. time - annotation builder for properties of type Time.
8. array - annotation builder for properties of type array.
9. color - annotation builder for properties of type color.
10. className - annotation builder for properties containing the CSS class name.
11. event - annotation builder for properties of type event.
12. node - annotation builder for properties of type ReactNode.
13. oneOf - annotation builder for properties of type enum, the property value can only be one of enum.
14. someOf - annotation builder for properties of type enum, the property value can contain multiple enum values.
15. readOnly - annotation builder for boolean properties that make a component read-only.
16. There are other APIs for describing component properties, you can find them in the documentation, these APIs deal with describing synthetic properties of a component (e.g. a set of arbitrary HTML attributes).

Example of a custom component definition

Well, let's describe some existing component from the popular MUI library. As an example, let's take a Button:

import {Button} from '@mui/material'
import {boolean, define, event, oneOf, string} from '@react-form-builder/core'

// Let's call our component matButton, using the prefix 'mat' to make it easy to understand
// from the name that the component belongs to the MUI library.
//
// Here we call the define function and pass it two parameters - the Button component
// and the unique name of the component type.
export const matButton = define(Button, 'MatButton')
  // component name displayed in the component panel in the designer
  .name('Button')
  // define the component properties that we want to edit in the designer
  .props({
    // button text
    children: string.named('Caption').default('Button'),
    // button color
    color: oneOf('inherit', 'primary', 'secondary', 'success', 'error', 'info', 'warning'),
    // button disable flag
    disabled: boolean,
    // callback fired when the button is clicked.
    onClick: event,
  })

Define a custom component from own component library

The definition from your own component is completely similar to the example. You can use any React component.

import {define, event, string} from '@react-form-builder/core'

const MyButton = ({children, disabled, ...props}: ComponentProps<any>) => {
  return <button {...props} disabled={disabled}>{children}</button>
}

export const myButton = define(MyButton, 'MyButton')
  .name('My Button')
  .category('Custom')
  .props({
    // button text
    children: string.named('Caption').default('Button'),
    // callback fired when the button is clicked.
    onClick: event,
  })

Example of an application with a custom component

Let's create a React application from scratch and connect this button to the application.

We will use Create React App to create the application. Open a shell and run the following commands:

Creating an application that displays Form Builder

npx create-react-app my-app --template typescript
cd my-app

Then install the Form Builder dependencies:

npm install @react-form-builder/core @react-form-builder/designer

• @react-form-builder/core - this package is needed to define components and display them.
• @react-form-builder/designer - this package is the actual Form Builder designer.

Then open the file src/index.tsx and copy and paste the following contents into it (we have removed the styles imported from the index.css file):

src/index.tsx

import React from 'react'
import ReactDOM from 'react-dom/client'
import App from './App'
import reportWebVitals from './reportWebVitals'

const root = ReactDOM.createRoot(
  document.getElementById('root') as HTMLElement
)
root.render(
  <React.StrictMode>
    <App/>
  </React.StrictMode>
)

// If you want to start measuring performance in your app, pass a function
// to log results (for example: reportWebVitals(console.log))
// or send to an analytics endpoint. Learn more: https://bit.ly/CRA-vitals
reportWebVitals()

Now open the file src/App.tsx and copy and paste the following contents there:

src/App.tsx

import React from 'react'
import {BuilderView, FormBuilder} from '@react-form-builder/designer'

const builderView = new BuilderView([])

function App() {
  return <FormBuilder view={builderView}/>
}

export default App

Open a shell and run the application using the following command:

npm run start

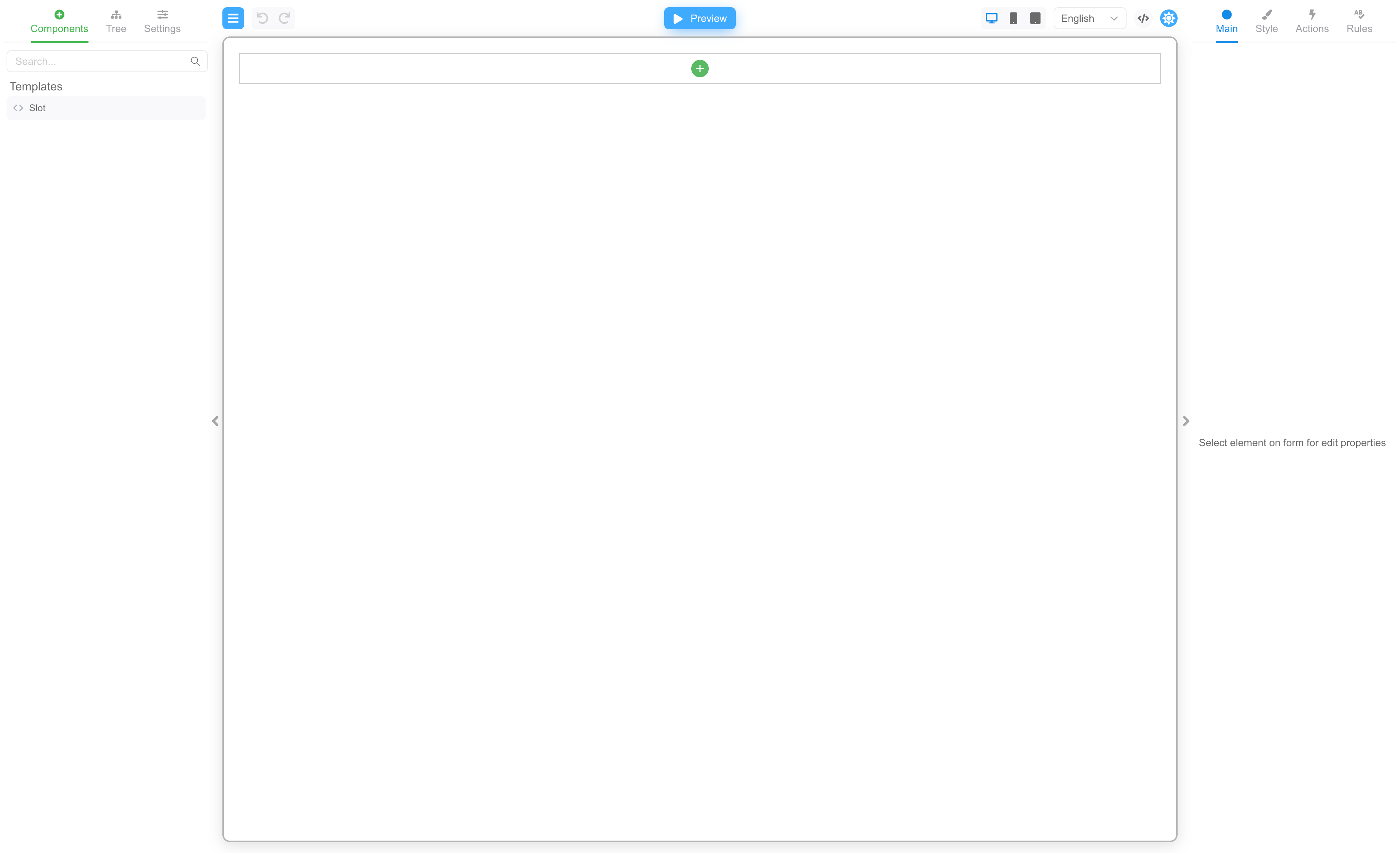

Once the application is compiled, the Form Builder should appear on the web page:

Now let's break down what we did.

1. Imported BuilderView, FormBuilder from @react-form-builder/designer package.
2. Created a builderView variable of type BuilderView. We passed an empty array as a parameter to the BuilderView constructor - this is an empty array with the component's metadata.
3. In the React component App, we rendered the FormBuilder component with the component metadata from the builderView variable.

Adding a custom component

Open the shell and stop the application (Ctrl+C). Then add the @mui/material library with the following command:

npm install @mui/material

Create a file src/MatButton.tsx with the following contents (similar to the one discussed earlier in this article):

src/MatButton.tsx

import {Button} from '@mui/material'
import {boolean, define, oneOf, string, event} from '@react-form-builder/core'

// Let's call our component matButton, using the prefix 'mat' to make it easy to understand
// from the name that the component belongs to the MUI library.
//
// Here we call the define function and pass it two parameters - the Button component
// and the unique name of the component type.
export const matButton = define(Button, 'MatButton')
  // component name displayed in the component panel in the designer
  .name('Button')
  // define the component properties that we want to edit in the designer
  .props({
    // button text
    children: string.named('Caption').default('Button'),
    // button color
    color: oneOf('inherit', 'primary', 'secondary', 'success', 'error', 'info', 'warning'),
    // button disable flag
    disabled: boolean,
    // callback fired when the button is clicked.
    onClick: event,
  })

And now we only need to connect our custom component to BuilderView. To do this, we need to import our custom component into the src/App.tsx file and add it to the array in the BuilderView constructor parameter. Take a look at the modified src/App.tsx file:

src/App.tsx

import React from 'react'
import {BuilderView, FormBuilder} from '@react-form-builder/designer'
import {matButton} from './MatButton'

const builderView = new BuilderView([matButton.build()])

function App() {
  return <FormBuilder view={builderView}/>
}

export default App

We use the matButton.build() method because the matButton variable is the component's metadata builder. After calling the build method, we will get an instance of BuilderComponent, which contains the metadata needed at design time and at runtime.

Now it's time to check how our component looks in the designer. Launch the application using the command:

npm run start

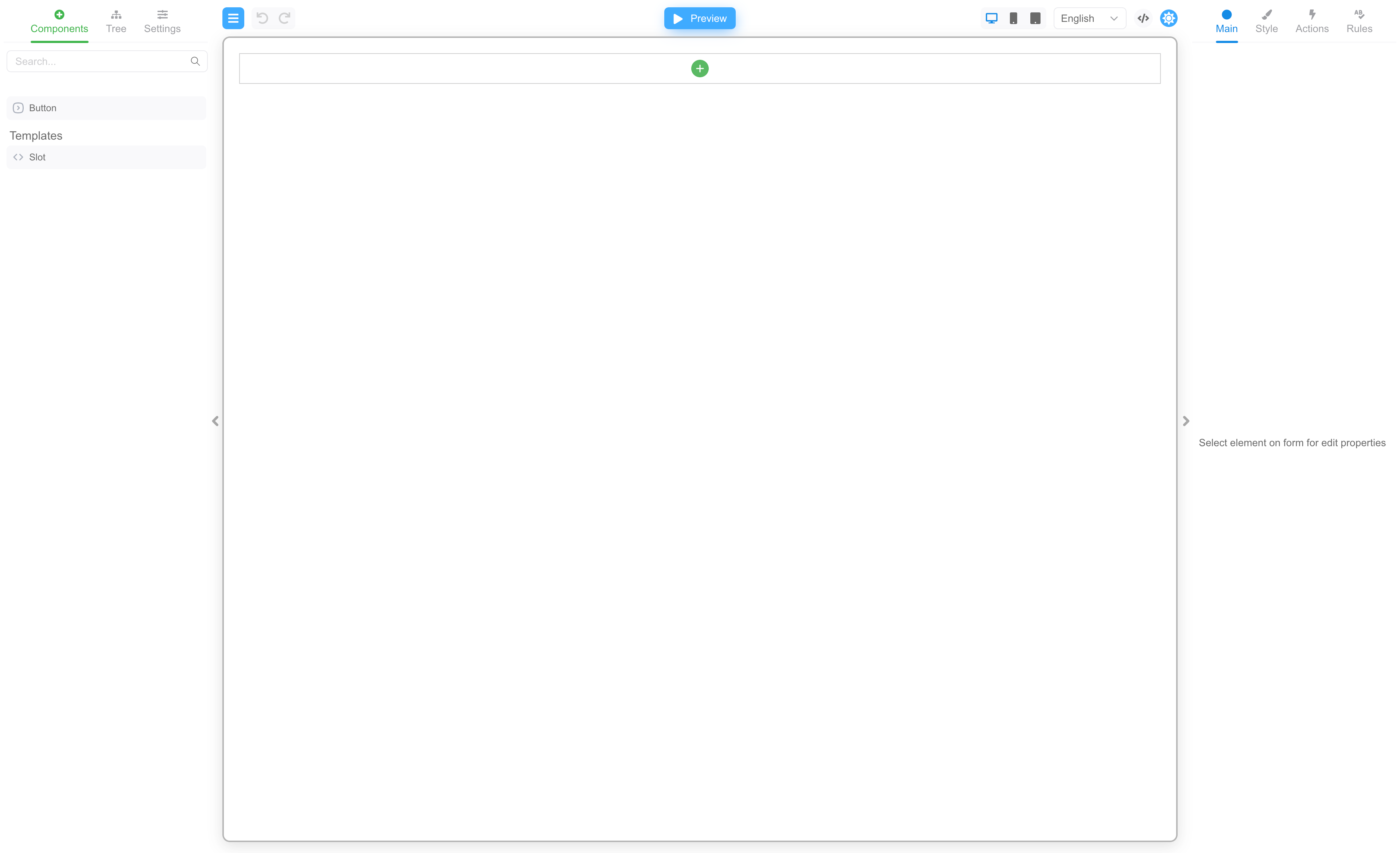

You will see in your browser that the component has appeared in the list of components on the left:

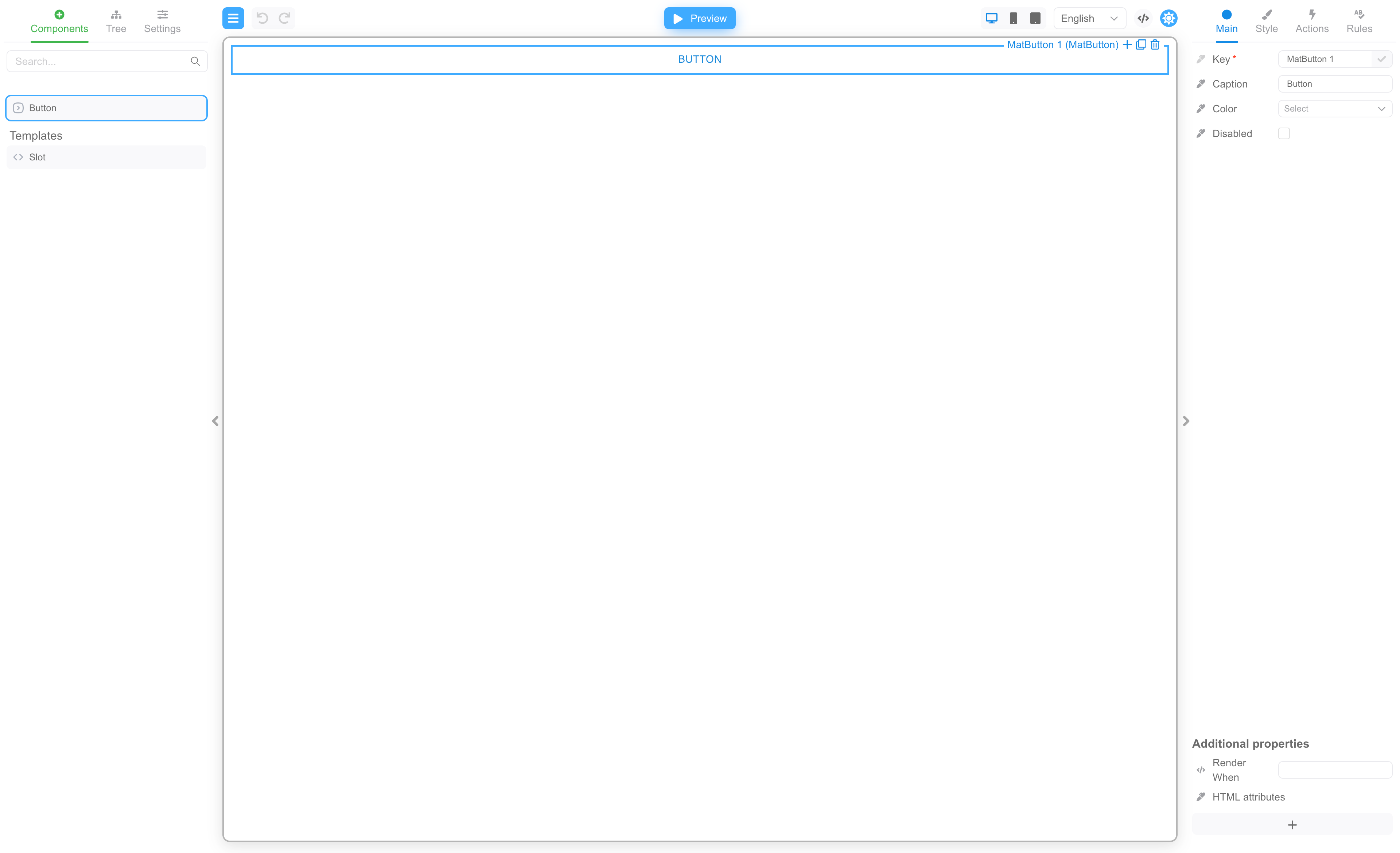

Drag the component onto the form from the panel on the left, or add it using the "+" button. In the right pane, you can see that the component properties we defined are available for editing:

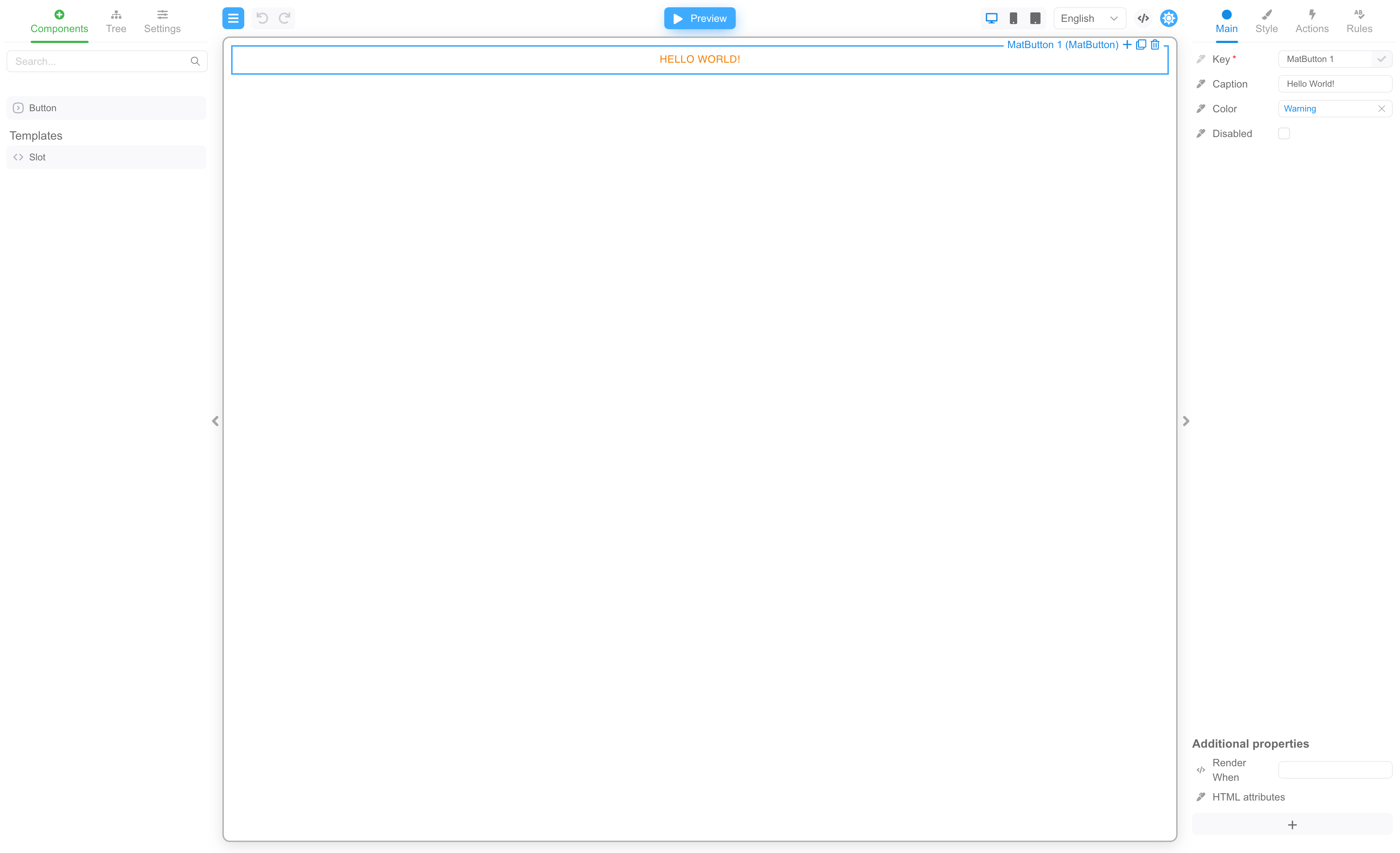

Now you can work with a custom component in the same way as inbuilt components, based on React Suite. By changing the properties of the component we can see how the component changes on the form:

Form with custom component

After creating a form in the designer, you can copy (or download) the form code and pass the form code to the FormViewer, a component for displaying forms. Here is an example of a form with a custom component:

{
  "version": "1",
  "form": {
    "key": "Screen",
    "type": "Screen",
    "props": {},
    "children": [
      {
        "key": "MatButton 1",
        "type": "MatButton",
        "props": {
          "children": {
            "value": "Hello World!"
          },
          "color": {
            "value": "warning"
          }
        },
        "events": {
          "onClick": [
            {
              "name": "log",
              "type": "common"
            }
          ]
        }
      }
    ]
  },
  "localization": {},
  "languages": [
    {
      "code": "en",
      "dialect": "US",
      "name": "English",
      "description": "American English",
      "bidi": "ltr"
    }
  ],
  "defaultLanguage": "en-US"
}

Let's display this form in the FormViewer component. Copy and paste the following code into the src/App.tsx file:

src/App.tsx

import {createView, FormViewer} from '@react-form-builder/core'
import {BuilderView, FormBuilder} from '@react-form-builder/designer'
import React from 'react'
import {matButton} from './MatButton'

const builderView = new BuilderView([matButton.build()])

const view = createView([matButton.build().model])

const form = {
  'version': '1',
  'form': {
    'key': 'Screen',
    'type': 'Screen',
    'props': {},
    'children': [
      {
        'key': 'MatButton 1',
        'type': 'MatButton',
        'props': {
          'children': {
            'value': 'Hello World!'
          },
          'color': {
            'value': 'warning'
          }
        },
        'events': {
          'onClick': [
            {
              'name': 'log',
              'type': 'common'
            }
          ]
        }
      }
    ]
  },
  'localization': {},
  'languages': [
    {
      'code': 'en',
      'dialect': 'US',
      'name': 'English',
      'description': 'American English',
      'bidi': 'ltr'
    }
  ],
  'defaultLanguage': 'en-US'
}


function App() {
  // return <FormBuilder view={builderView}/>
  return <FormViewer view={view} getForm={() => JSON.stringify(form)}/>
}

export default App

Let's take a look at what has changed in the application:

1. Imported createView, FormViewer from @react-form-builder/core package.
2. Created a set of metadata for FormViewer and saved it to a view variable. The FormViewer component does not need all the metadata of the component, what is in the model field is enough. The createView function creates a View object that contains information about the components required to display the form.
3. Added a form and saved it to the form variable.
4. Finally, instead of the FormBuilder component, we rendered the FormViewer component, passing view and the getForm function to it. The getForm function should return a string containing the JSON of the form.

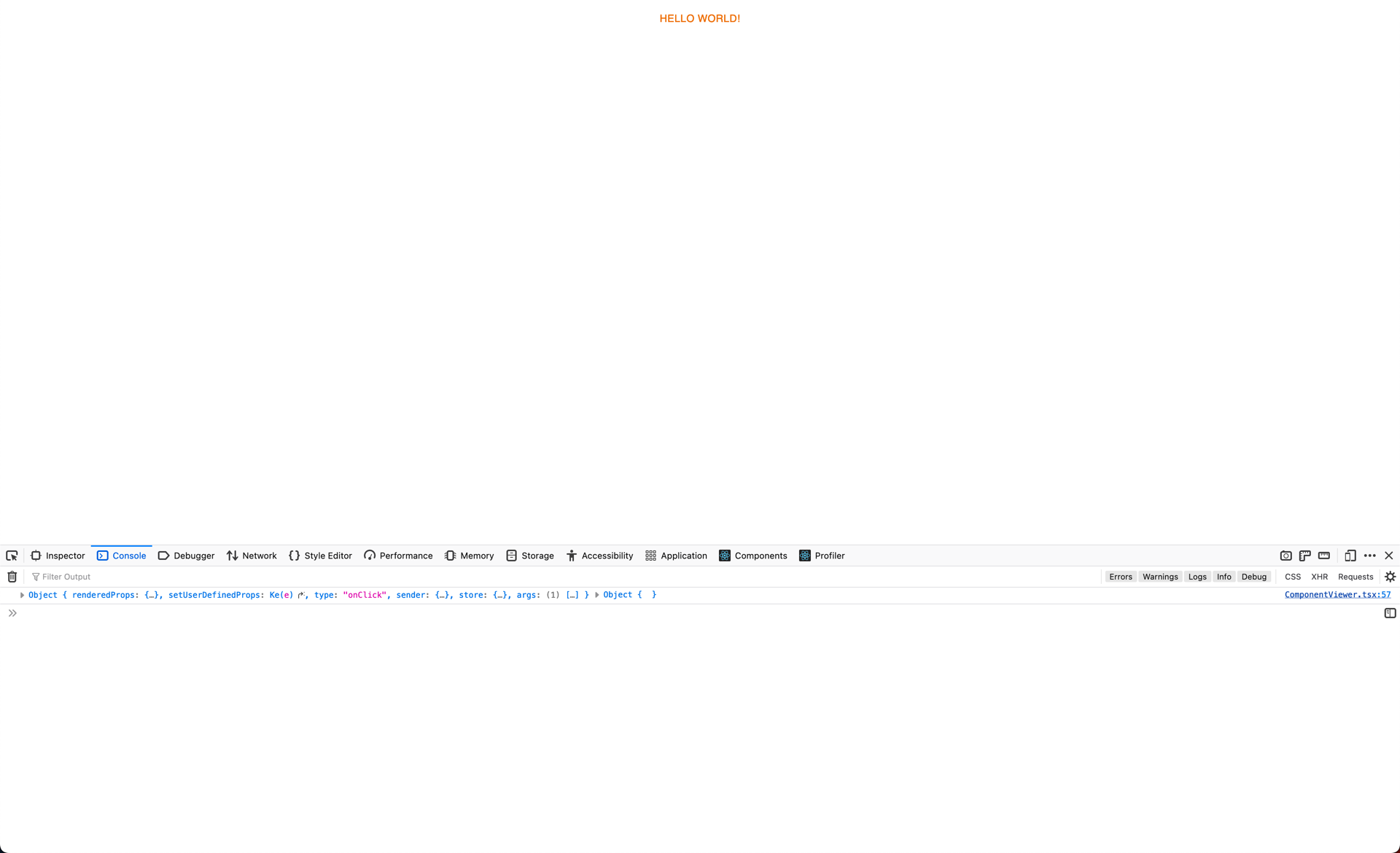

Opening the application in a browser you can see a simple form with a custom component. When you click on the component, the event is logged to the console.

Custom component containing data

Okay, but what if we need a component that contains data? For that, we must also define a component, but we must also apply the valued method to one of the component's properties. Once we do this, Form Builder will realise that this property of the component contains its value. The component must also have an onChange property, which must take the value of the component as a parameter.

To summarise, you need to:

1. Define one of the component properties as valued.
2. Define a onChange functional property in the component, such as this:

   onChange?: (value: any) => void

Let's add the Input component to the designer. Note that this component already has a onChange property, and its signature doesn't fit Form Builder:

function onChange(event: React.ChangeEvent): void

Well, we can just make a wrapper component and define everything we need in it. Create a file src/MatInput.tsx and add the following content to it:

src/MatInput.tsx

import {Input, InputProps} from '@mui/material'
import {define, string} from '@react-form-builder/core'

type MatInputProps = InputProps & {
  onChange?: (value: any) => void
}

const MatInput = (props: MatInputProps) => {
  const {onChange, ...otherProps} = props
  return <Input {...otherProps} onChange={event => {
    onChange?.(event.target.value)
  }}/>
}

export const matInput = define(MatInput, 'MatInput')
  .name('Input')
  .props({
    value: string.valued.default('')
  })

From the code above, you can see that:

1. We defined the MatInputProps type, which extends InputProps with the required onChange method.
2. We defined a MatInput component where we set the required behaviour for the onChange property.
3. We described the component by adding the value property as a string containing a value and having the default value of an empty string (this is to prevent React from writing errors about uncontrolled value to the console).

Now you can add this component to src/App.tsx. For simplicity only the code for the designer is shown:

import {BuilderView, FormBuilder} from '@react-form-builder/designer'
import React from 'react'
import {matButton} from './MatButton'
import {matInput} from './MatInput'

const builderView = new BuilderView([matButton.build(), matInput.build()])

function App() {
  return <FormBuilder view={builderView}/>
}

export default App

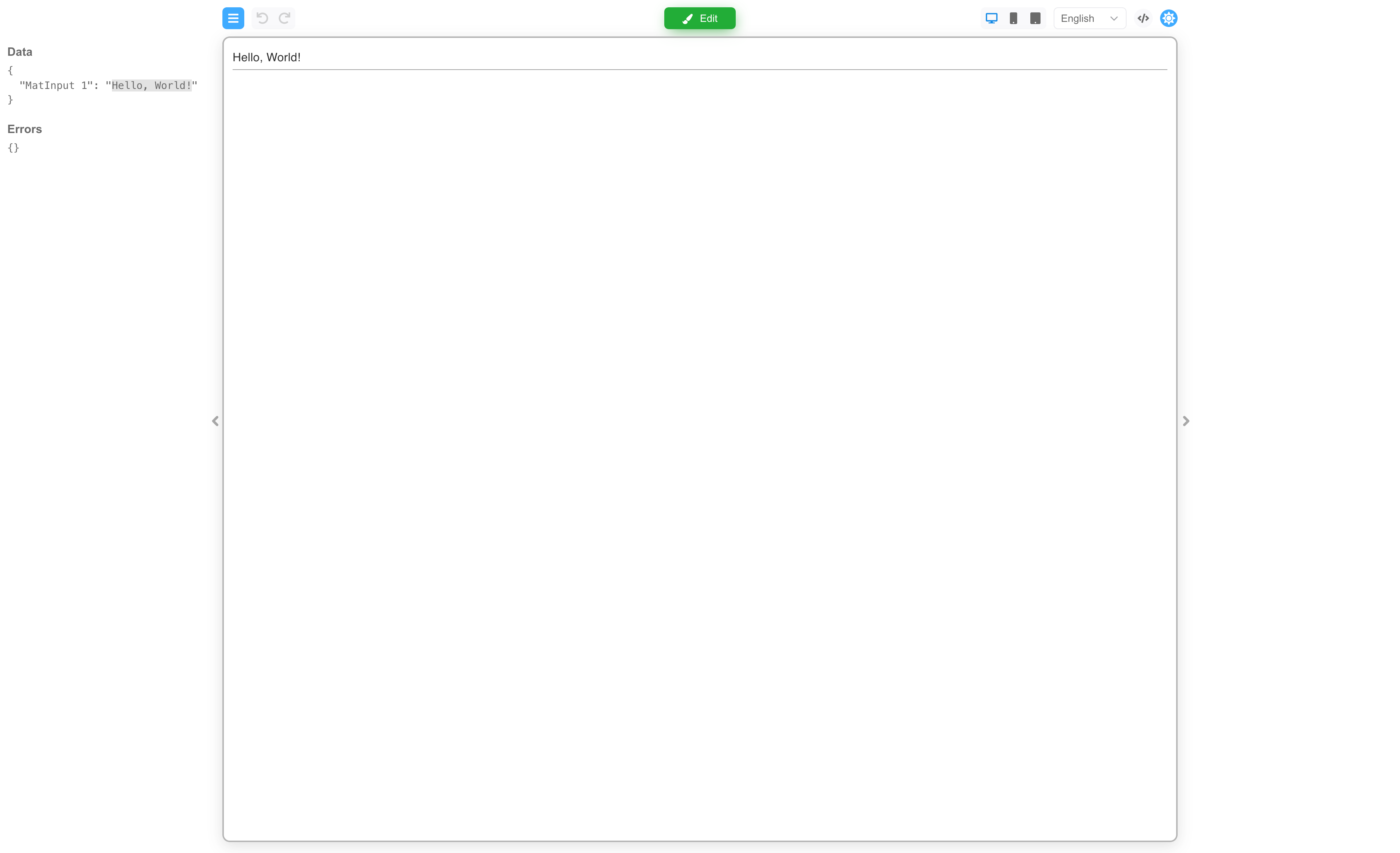

By launching the application and adding Input to the form, you can enter data into the Input component and observe how the data on the form changes:

Kind of a component

Also, in some cases, you may need to set the kind of the component. This is a property that shows how to render the component. For regular components, it is set to 'component' by default. You can the kind value to 'container' in case you need the component to be only a container, for its children, without having its own wrappers.

const myContainer = define(MyContainer)
  .type('MyContainer')
  .name('Container')
  .kind('container')
  .props({children: node})
  .css({
    flexDirection: flexDirection.default('column'),
    gap: gap.default('10px')
  })

Component icon

If you want to change the component icon that is displayed next to the component name, it is quite easy to do so. Just call the icon method when selecting a component and pass React ComponentType to it, which will draw the icon.

Illustrating example:

Component icon example

const MyIcon = () => {
  return <span style={
    {width: 16, height: 16, backgroundColor: 'rgba(150,130,20,0.5)', borderRadius: 8}
  }/>
}

const MyButton = (props: ComponentProps<any>) => {
  return <button>{props.children}</button>
}

const myButton = define(MyButton, 'MyButton')
  .name('My Button')
  .category('Custom')
  .icon(MyIcon)

This simple example shows how to connect an icon to a component. On lines 1-5, the React component MyIcon that displays the icon is defined - in our case, it's just a circle. On line 14, the MyIcon component is connected as an icon for the MyButton component.

Once the component is connected to the designer, the component icon will be displayed next to the text:

Conclusion

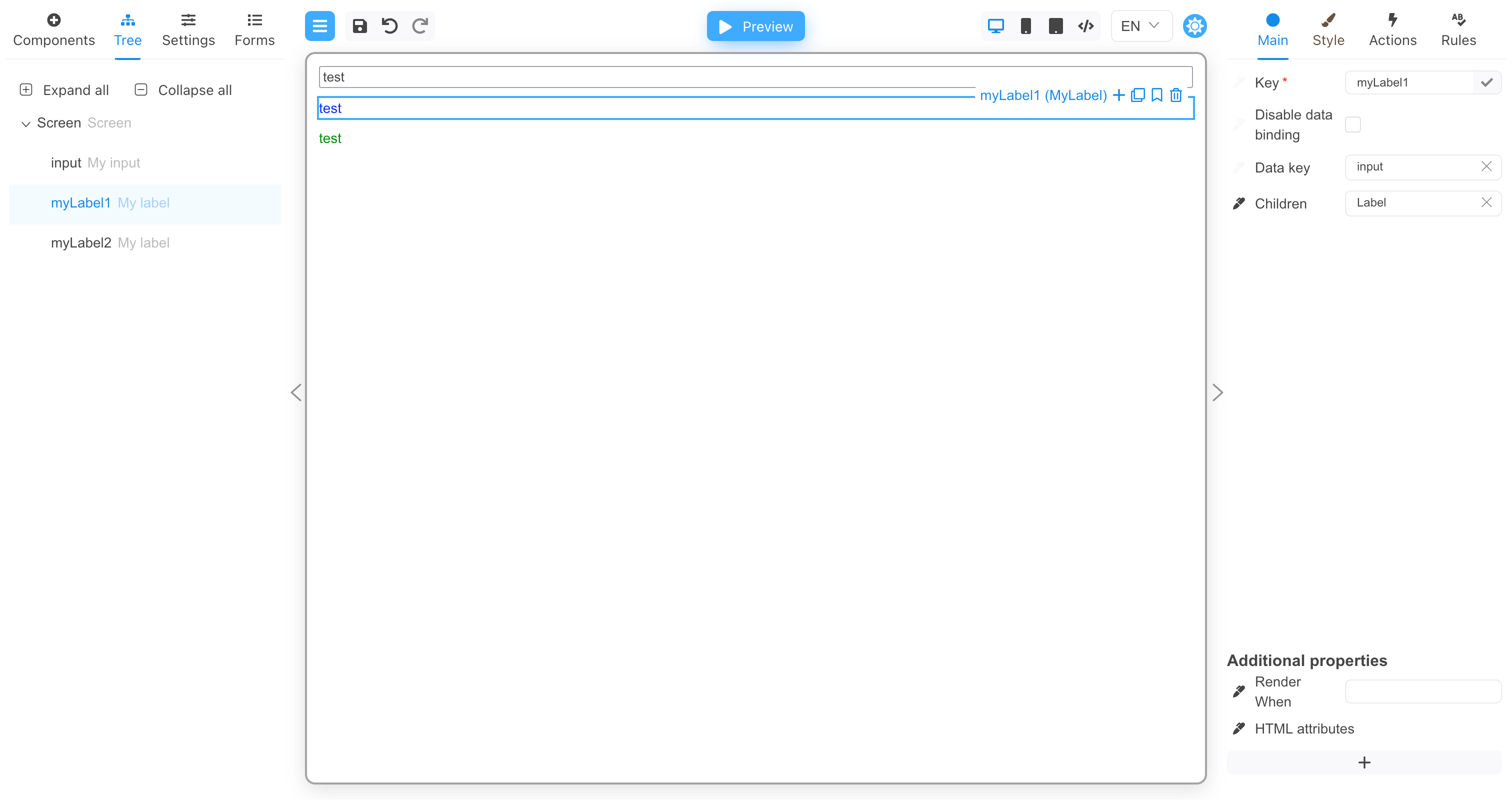

This article showed how to easily connect a custom component to use it in the designer. And also how a custom component is connected and displayed on a form.
