Form Builder

Form Builder is a client-side library for creating web forms. The library allows you to map a form from JSON to a dynamic HTML form and send the results to your server. The library has no built-in visual components to display the form. Instead, it is made to display your components. However, if you don't have your component set, there is a ready-made component set based on React Suite to work with.

Key features

  • UI-Agnostic Components: Works seamlessly with any UI library (MUI, Ant Design, shadcn/ui and others)
  • Pre-Built React Suite Integration: Includes a ready-to-use component library – @react-form-builder/components-rsuite.
  • Framework Support:
  • Multi-Database Support: Compatible with MySQL, PostgreSQL, MongoDB, SQLite, and more.
  • Built-in Validation with Zod: Includes pre-configured validation rules powered by Zod.
  • Extensible Validation Support: Works with Yup, AJV, Zod, Superstruct, Joi, and other custom validation libraries.
  • Responsive Layouts: Build forms that automatically adapt to all screen sizes.
  • Custom Actions: Enhance forms with interactive logic through custom JavaScript code.
  • Dynamic Properties: Implement real-time component changes with MobX-powered reactive properties.
  • Flexible Storage Options:
    • Store complete form definitions as JSON.
    • Programmatically generate forms via code.
  • Drag & Drop Form Designer: intuitive form building with easy drag-and-drop functionality. Demo.
  • Customizable Designer: tailor the form builder to match your workflow and branding.
  • Templates: create reusable components from your forms.
  • Signature Component: capture digital signatures directly in your forms.
  • QR Code Component: generate and embed QR codes dynamically.
  • Table Component (in development): structured data display and input.
  • Preset Componens: save and reuse custom-configured form elements.
  • i18n Support: built-in multilingual form localization.
  • Repeater Component: create repeatable sections for dynamic form fields.

Quick start

Let's create a sample form application from scratch. We will need to do the following:

  • Create the application itself.
  • Install the library.
  • Add the form to the page.
  • Run the application.
  • Submit the form.

In the end, we will get a simple web form:

Form example

Let's create an application and install dependencies.

npx create-vite formbuilder-app --template react-ts
cd formbuilder-app
npm install @react-form-builder/core @react-form-builder/components-rsuite

So now we have a Vite application. Let's add a form to the application.

Form description

Each form is just JSON with a description of the form. The library takes care of form rendering and event handling.

Each form element is a component described by a unique key and type, and a set of properties. They can also describe how the component should be validated and what CSS styles should be applied. You can create form's JSON using the builder:

const simpleForm = buildForm({errorType: 'RsErrorMessage'})
.component('container', 'RsContainer')
.style({flexDirection: 'row'})
.children((builder) =>
builder
.component('firstName', 'RsInput')
.prop('placeholder', 'Enter your first name')
.prop('label', 'First Name')
.validation('required')

.component('lastName', 'RsInput')
.prop('placeholder', 'Enter your last name')
.prop('label', 'Last Name')
.validation('required')
)

.component('birthDate', 'RsDatePicker')
.prop('label', 'Birth Date')
.prop('oneTap', true)
.validation('min').args({value: '1900-01-07T12:25:37.000Z'})

.component('submit', 'RsButton')
.prop('children', 'Submit')
.prop('color', 'blue')
.prop('appearance', 'primary')
.event('onClick')
.commonAction('validate').args({failOnError: true})
.customAction('onSubmit')
.json()

Add the form to the page

The component that displays forms is called FormViewer. It is necessary to pass to this component the getForm function to get the JSON of the form and the view property, this is the set of components for rendering the form. In this example, we will use viewWithCss for a React Suite library.

You can also pass your custom actions to the actions property to submit the form to the backend. In this example, we will simply call the alert function.

src/App.tsx
import {viewWithCss} from '@react-form-builder/components-rsuite'
import {buildForm, FormViewer} from '@react-form-builder/core'

const simpleForm = buildForm({errorType: 'RsErrorMessage'})
.component('container', 'RsContainer')
.style({flexDirection: 'row'})
.children((builder) =>
builder
.component('firstName', 'RsInput')
.prop('placeholder', 'Enter your first name')
.prop('label', 'First Name')
.validation('required')

.component('lastName', 'RsInput')
.prop('placeholder', 'Enter your last name')
.prop('label', 'Last Name')
.validation('required')
)

.component('birthDate', 'RsDatePicker')
.prop('label', 'Birth Date')
.prop('oneTap', true)
.validation('min').args({value: '1900-01-07T12:25:37.000Z'})

.component('submit', 'RsButton')
.prop('children', 'Submit')
.prop('color', 'blue')
.prop('appearance', 'primary')
.event('onClick')
.commonAction('validate').args({failOnError: true})
.customAction('onSubmit')
.json()

/**
* @returns the App element.
*/
export const App = () => {
return <FormViewer
view={viewWithCss}
getForm={() => simpleForm}
actions={{
onSubmit: (e) => {
// submit the form to the backend
alert('Form data: ' + JSON.stringify(e.data))
},
}}
/>
}

export default App

Modify the contents of the src/App.tsx file as in the example above to finalize the application.

Run the application

Now we can run the application. In the terminal, run:

npm run dev

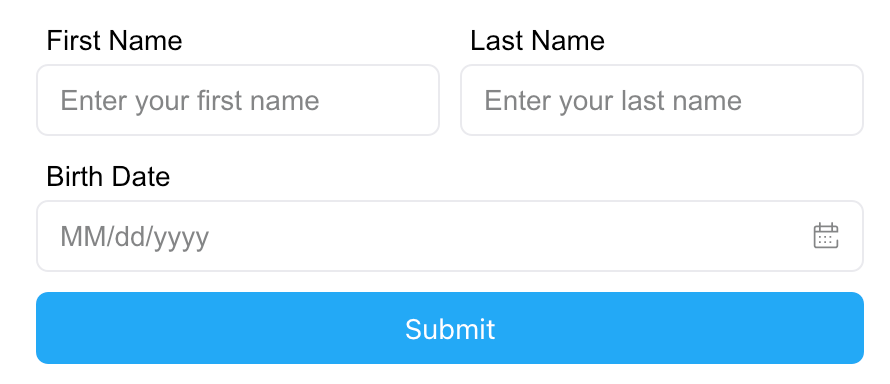

Open your browser and go to http://localhost:5173 (your port may be different). You should see the form we created.

Form example

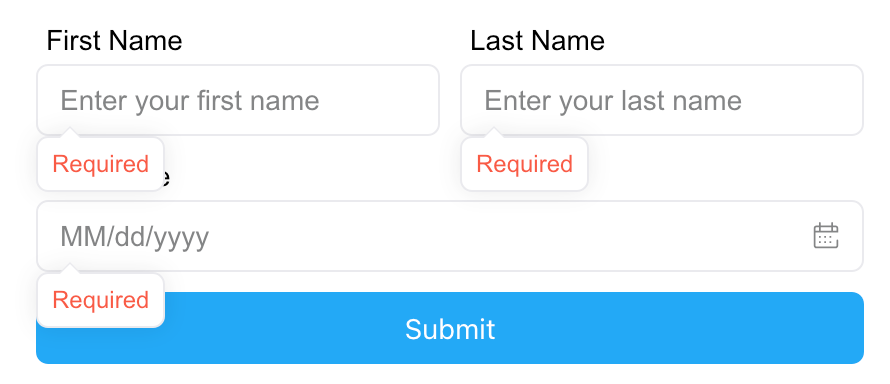

You can click on the Submit button without filling out the form, and you will see an error message.

Form example

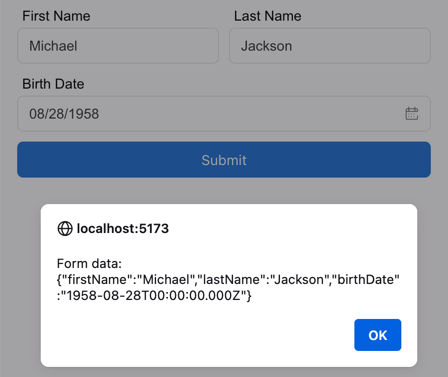

If you fill out the form and click Submit, you will see an alert with the form data.

Form example

Creating a form using Designer

Creating forms using JSON may not be as convenient as creating them visually in the Form Designer. Let's run the Form Designer locally. To do this, it is enough to install the package with the designer and connect components to it.

npm install @react-form-builder/designer @react-form-builder/components-rsuite

In the simplest configuration, the FormBuilder component has one mandatory view property, a visual description of the components. We will use the ready-made React Suite, you can use your own components.

src/Designer.tsx
import {builderViewWithCss} from '@react-form-builder/components-rsuite'
import {FormBuilder} from '@react-form-builder/designer'

/**
* @returns the Designer element.
*/
export const Designer = () => {
return <FormBuilder view={builderViewWithCss}/>
}

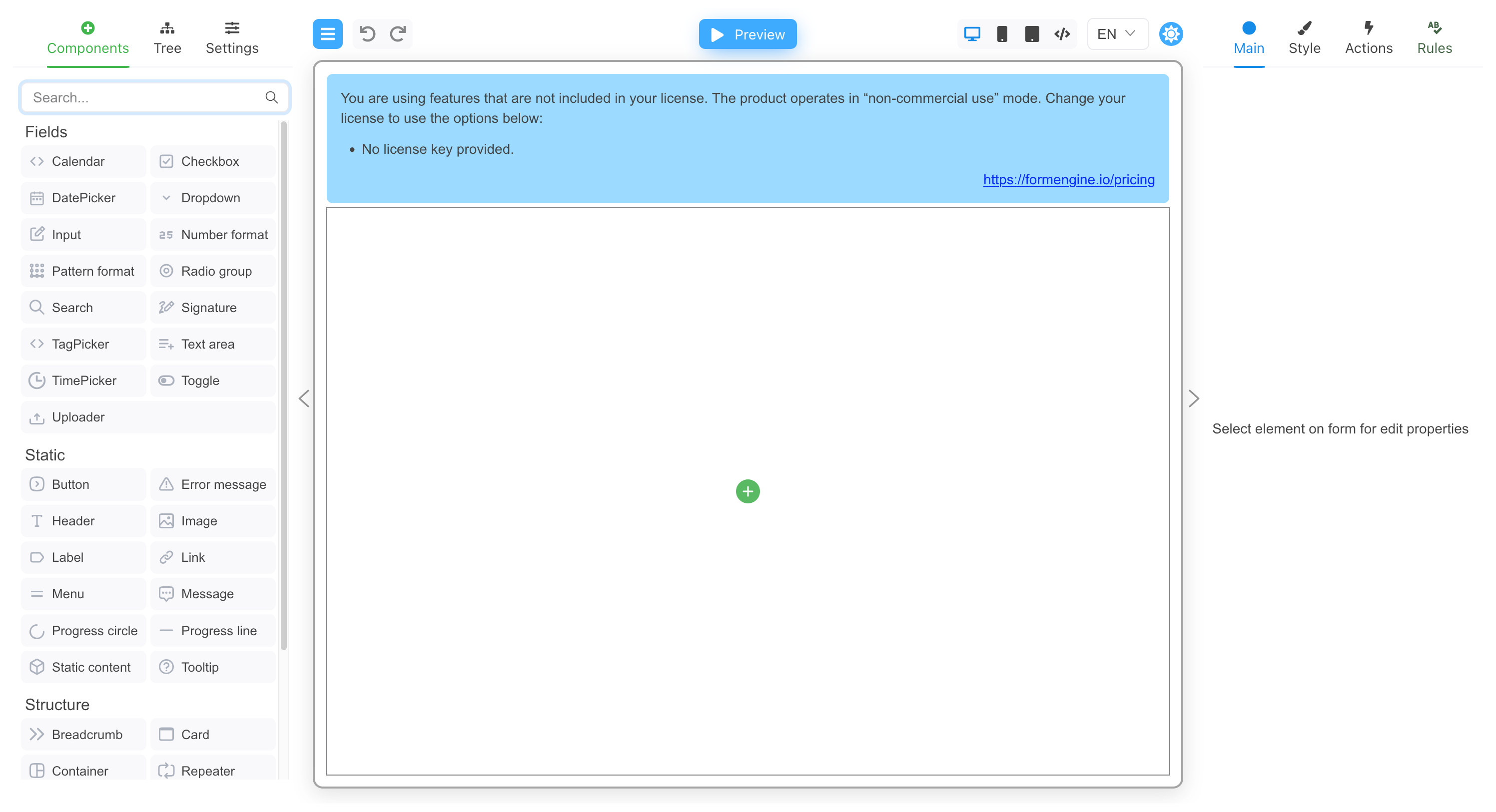

When you launch the Designer, you'll see roughly the following:

Form example

Now you can create a form right on the page, customize components, and more.

For a more complete example, see the link.
